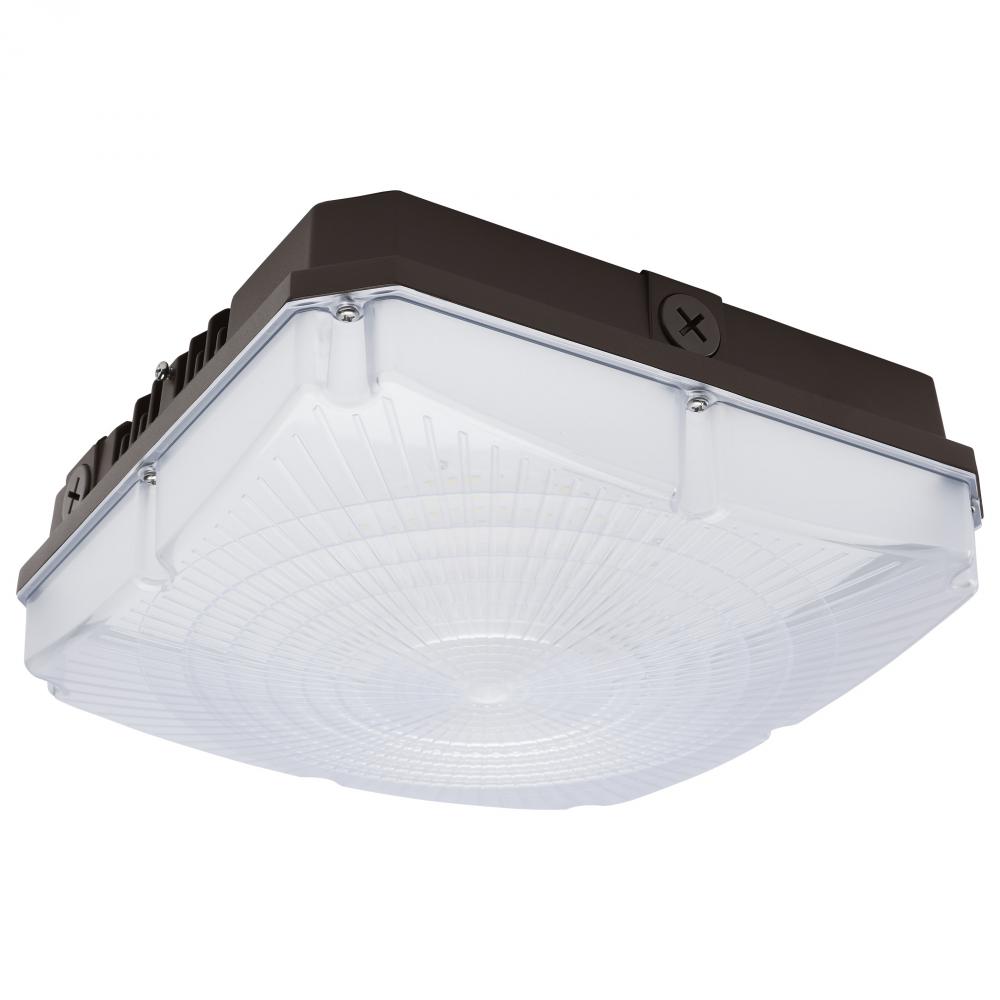

10 Inch LED Field Selectable Canopy Fixture; 45/60/70 Watts; 3K/4K/5K CCT (65/981)
by Nuvo
10 Inch LED Field Selectable Canopy Fixture; 45/60/70 Watts; 3K/4K/5K CCT
Product Specification
Item #
65/981
Dimensions
Height: 4.19"
Width: 10.06"
Additional product details
Vendor Item #
65/981
Category
Utility
Subcategory
Other Utility
Option
LED
, Prop 65
Category
Surface Mount
Sub Category
Canopy Fixture
Style
Utility
Additional Info
UV stabilized powder coated finish
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Soft White to Natural Light
Dimmable
Yes-Dimmable
Each Height
11.61
Each Length
11.89
Each Width
5.51
Length
10.06
Lumens
5625L-9450L
Tariff Code
9405.11.6020
Warranty
5 Year Limited - Fixtures
Amps
0.375-0.162/0.500-0.217/0.583-0.253A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
150
B_U_G_Rating
B3-U3-G3
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Direct Wired
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 10 percent
Dimmable Function
0-10V Dimming
DLC Classification
Premium
DLC Primary Use
Parking Garage Luminaires
Each Cube
0.4402
Each Quantity
1
Efficacy
125.00/130.00/135.00 LPW
FCC Compliant
Yes
Feature 1
CCT and Wattage Selectable
Feature 2
Ceiling or Pendant Mounting
Feature 3
Hinged Universal Mounting Bracket
Feature 4
6KV Surge Protection
Feature 5
IP65 and IK08 Vandal Resistant
Feature 6
Wet location rated
Feature 7
50,000 Hour Functional Life
Feature 8
10 Inch Square Fixture
Feature 9
B3-U3-G3 Rating
Finish Family
Bronze
Fixture shape
Square
HID Equiv
94W/125W/158W
Impact Rating (IK)
IK08
Incandescent Equivalent
300W/400W/500W
Indoor Outdoor
Outdoor
IP Rating
IP65
JA8 Compliant
No
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Long Description
SATCO|NUVO's 65-981 Field Selectable 10 inch square canopy fixture is an ideal choice for multiple applications. This fixture gives users the flexibility to choose from three wattage and three CCT options during installation. With a choice of surface m
Material
Die-Cast Aluminum
Mounting Procedure
Ceiling;Pendant Hanging Surface
Operating Frequency
50/60Hz
Operating Temp
-30C (-22F) to +45C (+113F)
Pack Type
Color Box
Photocell
No
Power Factor
0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's Field Selectable square canopy fixtures are an ideal choice for multiple applications. These fixtures give users the flexibility to choose from three wattage and three CCT options during installation. With a choice of surface mounting usin
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Sensor Occupancy or Vacancy
No
Short Description
10" LED SELECTABLE CANOPY
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
9.50%
Wattage Selectable
Yes
Weight Lb.
5.03
Manufactured By
Nuvo
Finish
Additional options that would change other selections
