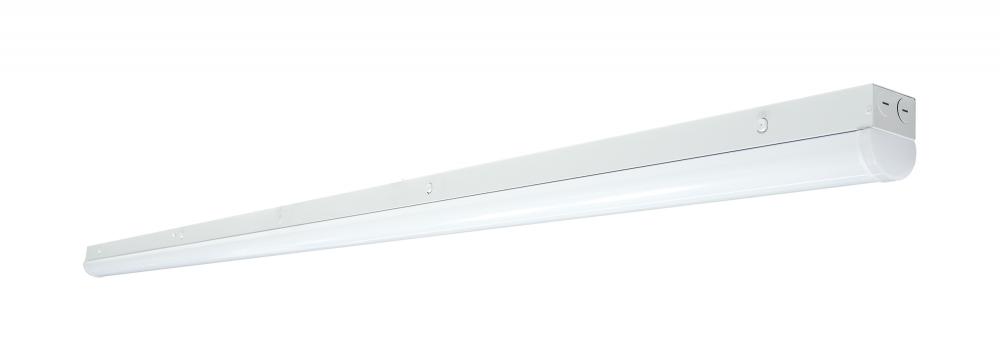

8 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish (65/702)
by Nuvo
8 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish
Product Specification
Item #
65/702
Dimensions
Height: 3.27"
Width: 2.95"
Additional product details
Vendor Item #
65/702
Category
Undercabinet
Subcategory
Strip Lights
Finish
White
Style
Traditional
Option
LED
, Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Linear Strip
Sub Category
Strip Fixture
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Dimmable
Yes-Dimmable
Each Height
5.32
Each Length
98.03
Each Width
5.2
Length
96
Lumens
3900L-6750L
Tariff Code
9405.11.6010
Warranty
5 Year Limited - Fixtures
Amps
0.250-0.108/0.333-0.144/0.417-0.181A
ANSI Base
Integrated
Beam Angle
120
B_U_G_Rating
B2-U4-G2
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 10 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium; Premium; Standard
DLC Primary Use
Stairwell and Passageway Luminaires; Direct Linear Ambient Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings
Each Cube
1.5694
Each Quantity
1
Efficacy
130.00/133.13/135.00 LPW
FCC Compliant
Yes
Feature 1
Flicker Free Driver
Feature 2
Wattage Selectable
Feature 3
CCT Selectable
Feature 4
Multiple Mounting Options
Feature 5
Optional Suspension Kit (65/707)
Feature 6
Optional Add On Microwave Sensor (86/202)
Feature 7
Optional Add On Emergency Battery Back Up (65/708)
Feature 8
5 year warranty
Finish Family
White
Flicker Free
Yes
Has Driver
Yes
HID Equiv
150W-200W
Incandescent Equivalent
150W-175W
Indoor Outdoor
Indoor
Installation Notes
Maximum connected units is 10. If dimming, the dimmer max load will dicatate how many units can be on the run/control.
IP Rating
IP20
JA8 Compliant
No
Lens Finish
White
Lens Material
Polycarbonate (PC)
Long Description
SATCO|NUVO's 65-702 CCT and wattage selectable linear strip light is the ideal choice in utility lighting fixtures. The rugged quality construction and ease of installation make these ideal for commercial applications. With a quick release button for e
Material
Steel
Mounting Diameter
4.75
Mounting Procedure
Ceiling/Wall
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +60C (+140F)
Pack Type
Box
Photocell
Optional Add-On
Power Factor
0.9
Quantity In Pack
1
R9 Value
27
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's CCT and wattage selectable linear strip light is the ideal choice in utility lighting fixtures. The rugged quality construction and ease of installation make these ideal for commercial applications. With a quick release button for easy set
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
8' LINEAR STRIP WHITE FINISH
Sloped Ceiling Compatible
Yes
Temperature (CCT)
3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
10.77%
Wattage Selectable
Yes
Weight Lb.
6.84
Manufactured By
Nuvo
Finish
Additional options that would change other selections
Recommended Items
Call for Price
BASE PRICE:
$
152
99
/
/ 1
($152.99 / 1)
