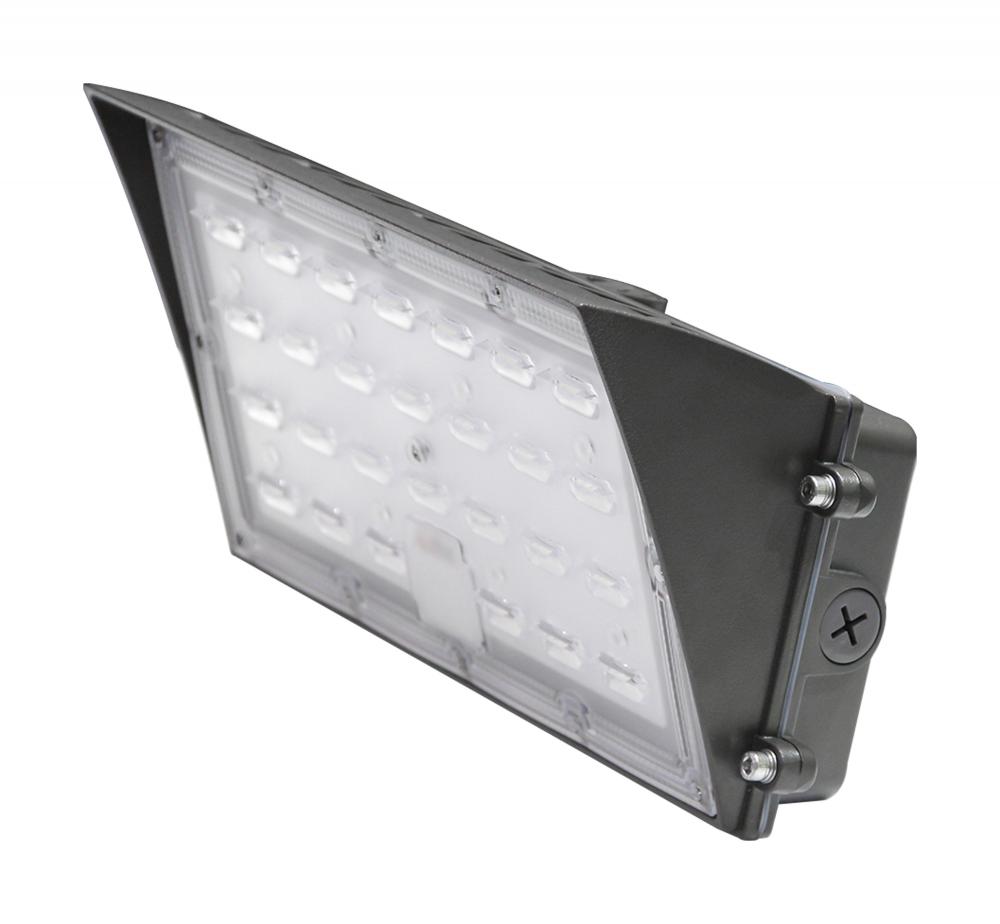

80 Watt Semi Cutoff LED Wall Pack; CCT Selectable; 9600-10K Lumens; DLC Premium (65/676)
by Nuvo
80 Watt Semi Cutoff LED Wall Pack; CCT Selectable; 9600-10K Lumens; DLC Premium
Product Specification
Item #
65/676
Dimensions
Height: 5.83"
Width: 12.60"
Additional product details
Vendor Item #
65/676
Category
Exterior
, Sconces
Subcategory
Wall Lights
, Outdoor Wall Lights
Finish
Bronze
Style
Traditional
Option
LED
, Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Wall Pack
Sub Category
Standard
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Dimmable
Yes-Dimmable
Each Height
9.25
Each Length
13.98
Each Width
6.1
Lumens
9600L-10000L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.667-0.289A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
55x105
B_U_G_Rating
B1-U4-G3
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube
0.4565
Each Quantity
1
Efficacy
120.00/122.50/125.00 LPW
FCC Compliant
Yes
Feature 1
IP65 rating for all-weather durability
Feature 2
Directs light out, not up
Feature 3
0-10V dimming
Feature 4
Maintenance free
Feature 5
Polycarbonate lens, die-cast aluminum body
Feature 6
Operating temperature: -40C (-40F) to a maximum of 40C (104F)
Finish Family
Bronze
Has Driver
Yes
HID Equiv
250W
Incandescent Equivalent
500W
Indoor Outdoor
Outdoor
IP Rating
IP65
JA8 Compliant
No
Lens Material
Impact Resistant PC
Long Description
SATCO|NUVO's 65-676 rugged 80 watt Semi Cutoff Wall pack features Color Quick selectable color temperature, along with advancements in design to minimize light trespass. The pack is DLC Premium certified, and delivers 50,000 hours of superior, energy-e
Material
Die-Cast Aluminum
Mounting Procedure
Wall
Operating Frequency
50-60Hz
Operating Temp
-40C (-40F) to +40C (+104F)
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
This rugged wall pack features Color Quick selectable color temperature, along with advancements in design to minimize light trespass. The pack is DLC Premium certified, and delivers 50,000 hours of superior, energy-efficient LED light. An add-on photocell
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
80W SEMI CUTOFF WALL PACK
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
10.29%
Wattage Selectable
No
Weight Lb.
3.31
Wire Temp Rating
105C (221F)
Manufactured By
Nuvo
Finish
