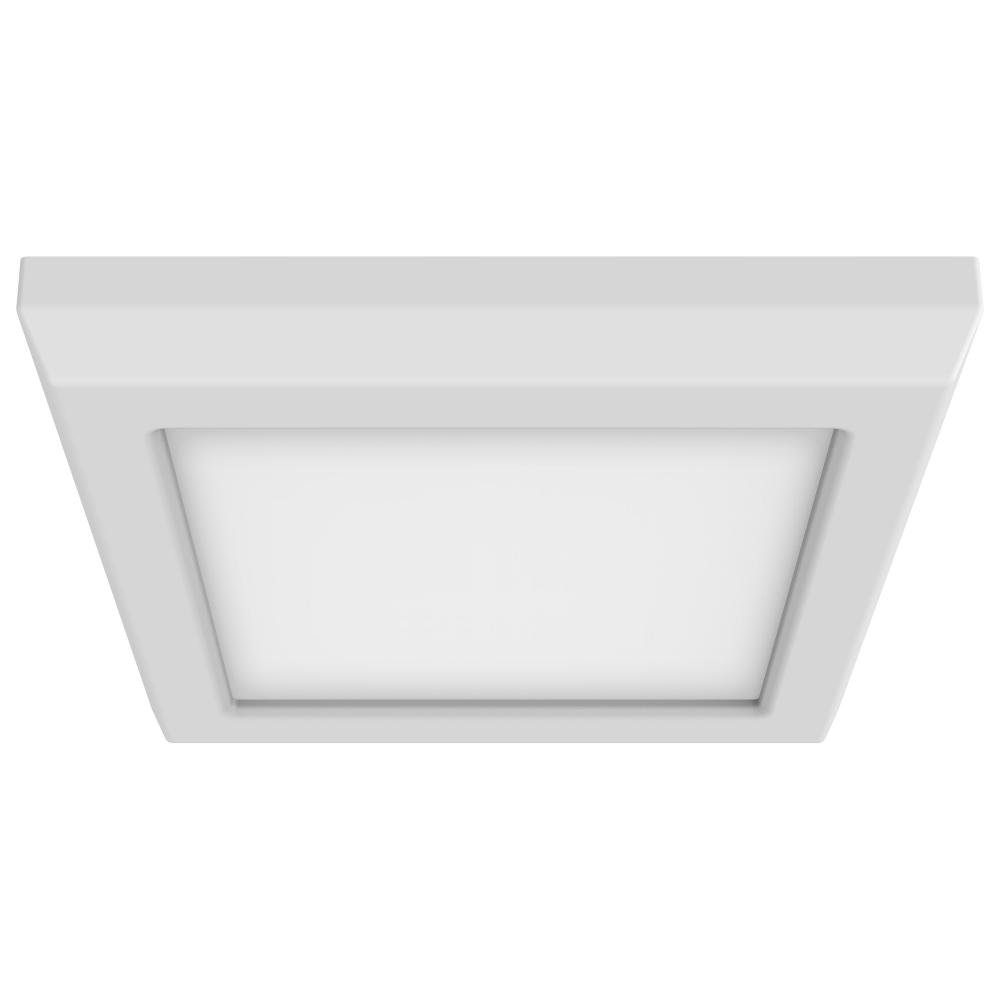

Blink Pro - 9W; 5in; LED Fixture; CCT Selectable; Square Shape; White Finish; 120V (62/1704)
by Nuvo
Blink Pro - 9W; 5in; LED Fixture; CCT Selectable; Square Shape; White Finish; 120V
Product Specification
Item #
62/1704
Dimensions
Height: 0.67"
Width: 5.00"
Additional product details
Vendor Item #
62/1704
Category
Flush Mounts
Subcategory
Other Flush Mounts
Finish
White
Option
Energy Star
, LED
, Prop 65
Lumens
450-800
Kelvin
4001-4500
Category
Close-to-Ceiling
Sub Category
Edge Lit
Style
Utility
Additional Info
UGR - 28.05; SDCM - 464; Hi pot - DC-1550V; Edge-lit - Yes
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White to Natural Light
Dimmable
Yes-Dimmable
Each Height
5.2
Each Length
5.2
Each Width
1.81
Length
5
Lumens
680L-730L
Tariff Code
9405.11.8020
Warranty
5 Year Limited - Fixtures
Amps
0.075A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
100
CA Prop-65
Lead
CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Closet Rated
Yes
Country Of Origin
Thailand
CRI
90
Dimmable Down To
100 to 10 percent
Dimmable Function
120V only
Each Cube
0.0283
Each Quantity
1
Efficacy
75.56/78.33/81.11 LPW
ES Category
Downlight Surface Mount
ES Unique ID
ESID-2402970
FCC Compliant
Yes
Feature 1
Integrated LED featuring 9 watts, CCT Selectable from warm to natural light, 90 CRI
Feature 10
Easy installation with included instructions
Feature 2
Fixture is dimmable, selectable from 680 to 730 lumens, with a beam spread of 100
Feature 3
5 inch Length x 5 inch Width x 0.67 inch Height
Feature 4
White Finish with Acrylic Panel
Feature 5
Closet rated with zero clearance from storage material
Feature 6
Ideal for corridors, closets, kitchens, bathrooms, bedrooms, including outdoors as they are wet location rated with closed ceiling applications
Feature 7
Rated for 50,000 hours
Feature 8
5 year warranty
Feature 9
Visit Satco.com for optional accessories: 5 inch square extension collar; White - 25-1704, Black - 25-1705, Bronze - 25-1706
Finish Family
White
Fixture shape
Square
Flicker Free
No
Incandescent Equivalent
60W
Indoor Outdoor
Indoor
Installation Notes
Surface mount; Compatible with 3"&4" J-box and pancake J-box with additional accessory
JA8 Compliant
Yes
Lens Material
Poly methyl methacrylate (PMMA)
Long Description
From designer aesthetics to state-of-the-art technology, BLINK's ENERGY STAR certified fixtures embody this concept entirely. The sleek, low-profile style features die-cast construction, and is CCT selectable, with five preset options from warm to natu
Material
Die-Cast Aluminum
Mounting Procedure
Ceiling
NEC Compliance
Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
From designer aesthetics to state-of-the-art technology, BLINK's ENERGY STAR certified fixtures embody this concept entirely. The sleek, low-profile style features die-cast construction, and is CCT selectable, with five preset options from warm to natu
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
BLINK 9W LED 5" SQ WHITE
Sloped Ceiling Compatible
Yes
Specification Notes
Overall height of fixture and driver: 1.59"
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
Yes
Total Harmonic Distortion
<20%
Wattage Selectable
No
Weight Lb.
0.6899999999999999
Manufactured By
Nuvo
