LED 4 ft. Linear Hi-Bay- 225W- 4000K - White Finish - 100-277V
Image may not reflect selected features

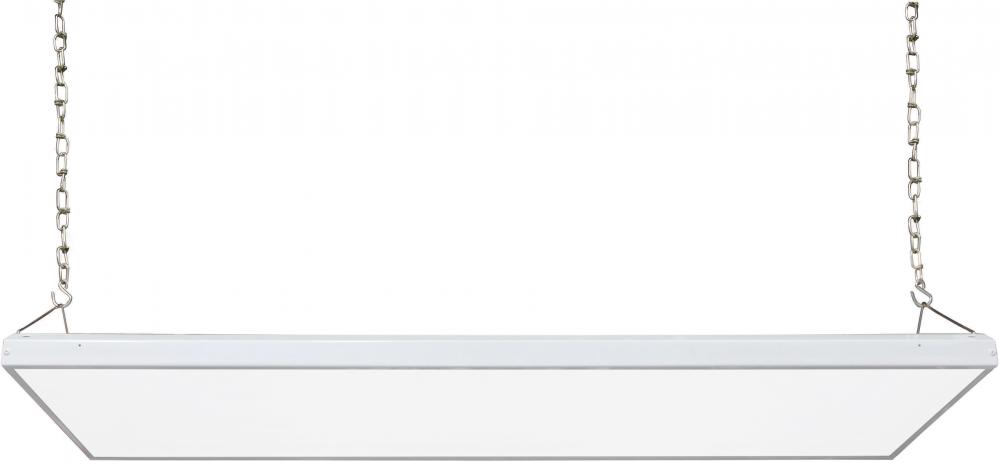

LED 4 ft. Linear Hi-Bay- 225W- 4000K - White Finish - 100-277V (65/507) by Nuvo
LED 4 ft. Linear Hi-Bay; 225W; 4000K; 100-277V
Product Specification
Item #
65/507
Dimensions
Height: 2.99"
Width: 12.60"
Additional product details
Vendor Item #
65/507
Category
Track Ltg.
Subcategory
Linear Track
Finish
White
Style
Traditional
Option
LED , Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Hi-Bay
Sub Category
Linear
Style
Utility
Additional Info
Includes brackets and 48 inch chain
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Cool White
Dimmable
Yes-Dimmable
Each Height
15.75
Each Length
47.83
Each Width
4.33
Length
45.87
Lumens
30375L
Tariff Code
9405.11.6020
Warranty
5 Year Limited - Fixtures
Amps
2.250-0.812A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
120
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Direct Wired
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube
1.8877
Each Quantity
1
Efficacy
135.00 LPW
FCC Compliant
Yes
Feature 1
Length: 45.87 inches, Width: 12.60 inches, Height: 2.99 inches
Feature 2
Dimmable
Feature 3
Damp location rated for indoor use
Feature 4
4000K Cool White Light
Feature 5
Superior 80 CRI light quality
Feature 6
5 year limited warranty
Feature 7
30375 lumens
Feature 8
Rated for 50,000 hours
Feature 9
FCC and RoHS compliant
Finish Family
White
Incandescent Equivalent
2000W
Includes
(2) 48 inch Chain; (2) V-Clips; (1) 1.02 inch Mounting Bracket
Indoor Outdoor
Indoor
IP Rating
IP20
JA8 Compliant
No
Long Description
SATCO|NUVO's 65-507 225 watt, 4 foot LED Linear High Bay Fixture provides broad, even light distribution in all commercial applications. Illuminate your work space with this energy saving LED fixture that is functional and efficient. With a high lumens
Material
Aluminum
Mounting Procedure
Ceiling: Chain
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Pack Type
Box
Power Factor
0.94
Quantity In Pack
1
R9 Value
9
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's 225 watt, 4 foot LED Linear High Bay Fixture provides broad, even light distribution in all commercial applications. Illuminate your work space with this energy saving LED fixture that is functional and efficient. With a high lumens count,
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
225W LED 4FT LINEAR HI-BAY
Temperature (CCT)
4000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
9.30%
Wattage Selectable
No
Weight Lb.
19.48
Manufactured By
Nuvo
Finish
Additional options that would change other selections
Recommended Items
Call for Price
Qty:
BASE PRICE:
$
287
99
/ / 1
($287.99 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 54 items available.
