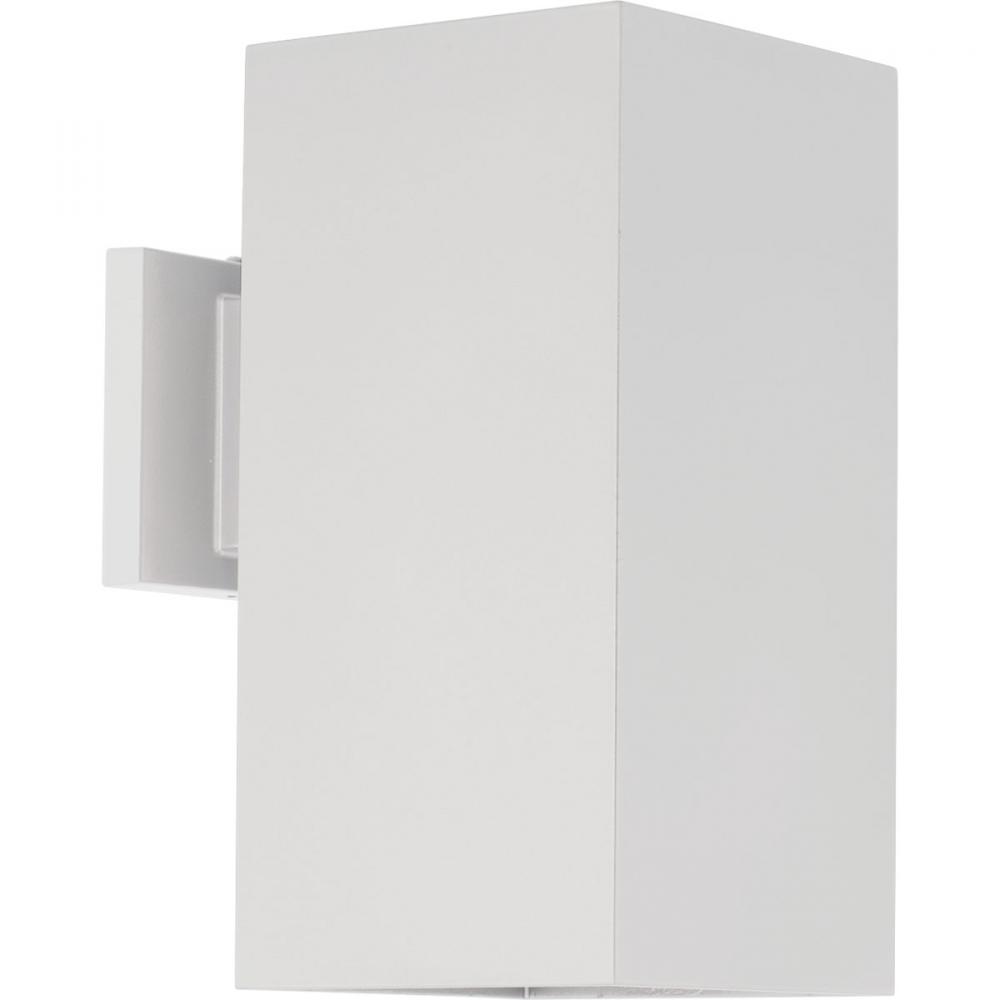

6" LED Square Outdoor Wall Mount Fixture (P5643-30-30K)
by Progress
6" LED Square Cylinder with heavy-duty aluminum construction, die-cast aluminum wall bracket. UL listed for wet locations. Powder coat for chipping and fading resistance. Dark Sky compliant for down light only. The P5643 is ideal for indoor/outdoor applications. It can be used in residential or light commercial installations. White finish.
Downloads
Product Specification
Item #
P5643-30-30K
Dimensions
Height: 12.00"
Width: 8.88"
Length: 6.00"
Additional product details
Vendor Item #
P5643-30-30K
Category
Exterior
Subcategory
Wall Lanterns
Finish
White
Style
Contemporary
, Transitional
Option
Dark Sky
, Energy Efficient
, Energy Star
, Title 24
, Outdoor
, Wet Rated
, LED
, Title 20
Voltage
100-120
Lumens
450-800
Mount Type
Flush Mount
Kelvin
2501-3000
Location Rating
Wet Rated
Category
Outdoor
Finish
White
Style
Modern;Transitional
Option
Dark Sky
, Energy Efficient
, Title 20
, Title 24
, Wet Rated
Family
LED Sq Cylinder
Voltage
120
Number of Bulbs
1 Bulbs
Bulb Hours
60000
Bulb Type
LED
Height To Center of Outlet
7.50
Introduction Date
01/16/2017
Kelvin
3000
Keyword(s)
flush mount;ceiling fixture;ceiling light;led light;energy efficient
Length
6.00
Lumens / Light Output
1864
Material
Die-Cast Aluminum
Ship Carton Height
14.96
Ship Carton Length
11.80
Ship Carton Width
9.06
Ship Weight
6.53
Special Features
White finish.;Ideal for a wide variety of interior and exterior applications.;Die-cast aluminum construction with durable powder coated finish;1864 lumens 64 lumens/watt per module (delivered);3000K color temperature, 90+ CRI;Dimmable to 10% with many ELV
Vendor Ship Method
Non UPS Shippable False
Warranty
5-year Limited
Weight
6.43
Wire Included
6 in
Americans with Disabilities Act
No
Bulb CRI
90 CRI
Bulb Included
Yes
Can be Mounted Up or Down
No
Canopy Shape
Square
Certified Listed Location
Wet Location Listed
Construction Material Main Part
Construction
Convertible Fixture Includes Both Mounts
FALSE
Country of Origin
CN
Dark Sky
Yes, per photometry (not registered with IDA)
Design Series
No
Dimming Compatability
Lutron_Diva DVELV-300P;Lutron_Nova_T NTELV-300;Lutron_Maestro MAELV-600
Dimming Protocol
ELV/Reverse Phase
Dimming Range
10%
Energy Efficient
Yes
Energy Star
No
Finish Type
Painted
Frequency Rating
60 Hz
Grounded Convenience Outlet included
No
JA8
No
Lamp Type Actual
LED
Lamp Type Basic
Solid State
Lamp Wattage
29
Lumens per Watt
64.00
Mount Location
Wall
MTO
No
Operating Temperature Celcius Max
30 °C
Prop 65
Yes
Prop 65 Description
Reproductive Harm, Cancer
Room Type
Outdoor
Safety Rating
cULus
Starting Temperature Minimum
-30 °C
Sub Brand
Progress LED
Title 20
Yes
Title 24
Yes
Weight of Fixture Exceeds NEC Limits
No
Width Diameter
6 in Depth
Manufactured By
Progress
Finish
Additional options that would change other selections
Family
Additional options that would change other selections
Included Items
Bulbs: (1) x 29 Watt LED
